Architecture

System architecture overview System architecture overview

Layers

The engine is split into four layers. Each layer only depends on the layer below it — never above.

The execution layer is injected into the service layer via ExecutionPolicy — it is a pluggable runtime concern, not a separate tier.

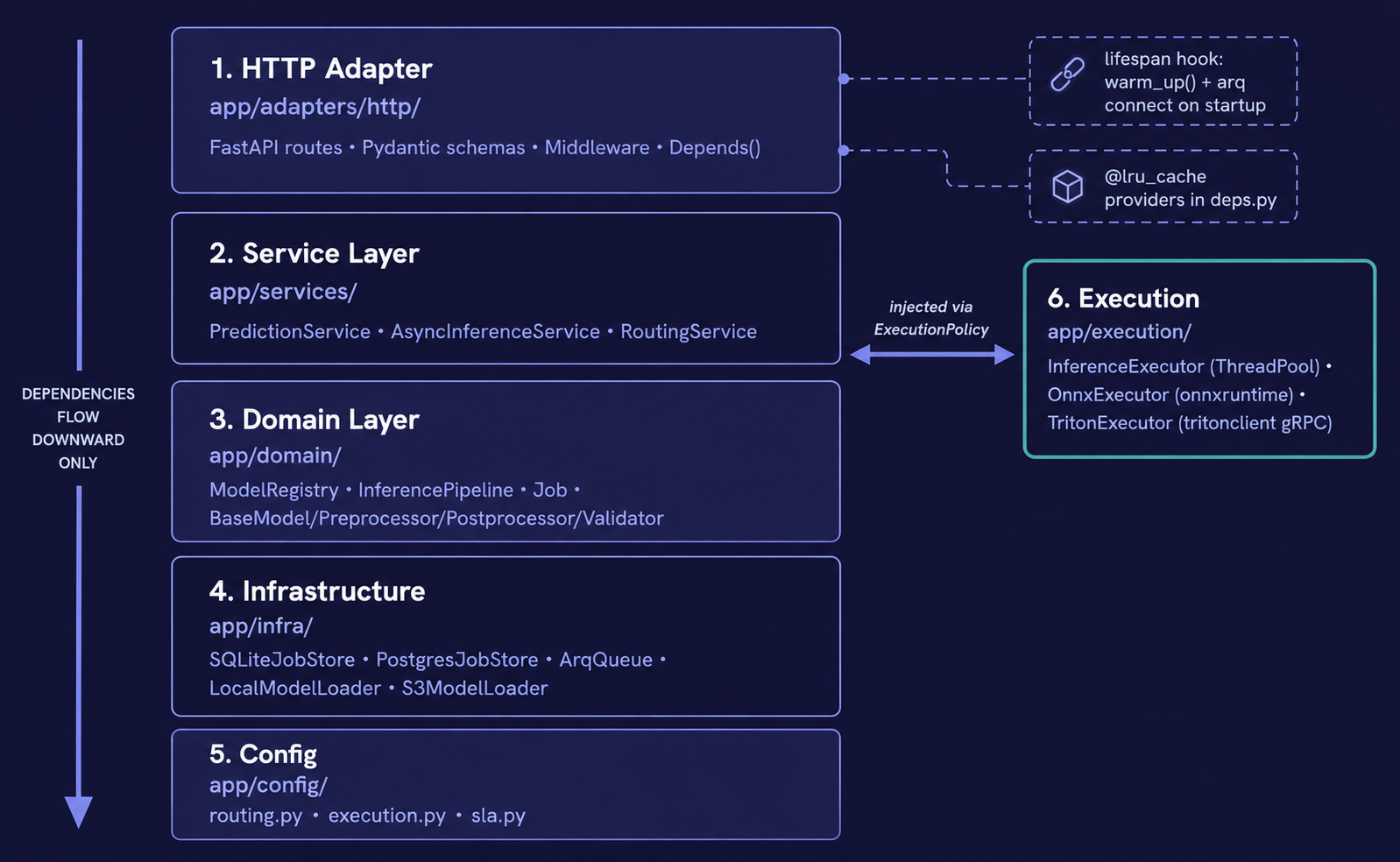

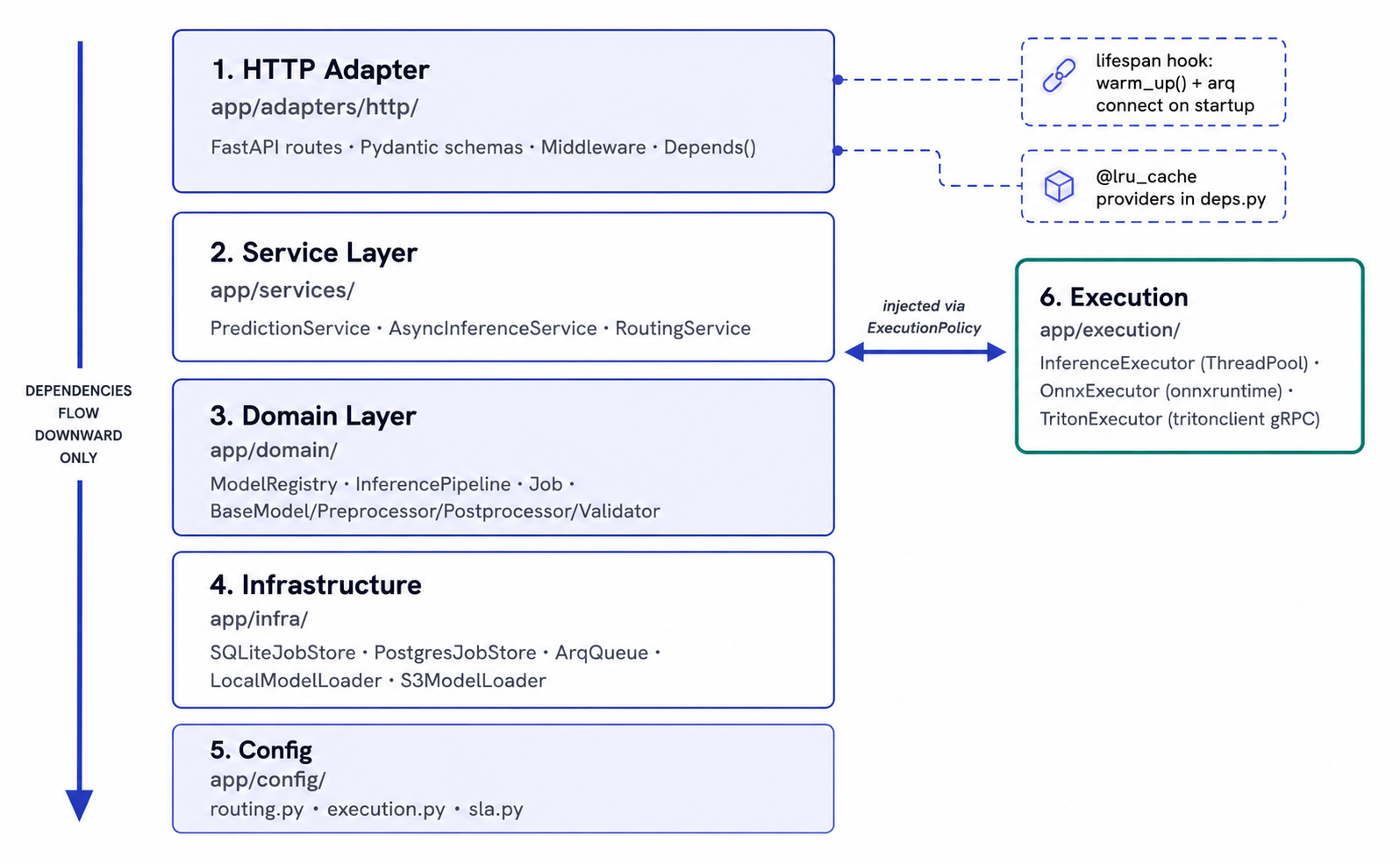

Layer dependency diagram Layer dependency diagram

Layer responsibilities

Layer Package Knows about
HTTP Adapter app/adapters/http/ FastAPI, Pydantic, HTTP status codes
Service app/services/ Domain objects, executors, metrics, logging
Domain app/domain/ Pure Python — no HTTP, no storage SDKs
Infrastructure app/infra/ psycopg2, arq, boto3
Execution app/execution/ ThreadPoolExecutor, onnxruntime, tritonclient
Config app/config/ Routing rules, executor assignments, SLA timeouts

Invariants

These rules must never be broken:

  1. No upward imports. Domain never imports from services or adapters. Services never import from adapters.
  2. No HTTP in domain or services. fastapi, starlette, pydantic are adapter-layer concerns only.
  3. No storage SDKs in domain. psycopg2, boto3, arq belong in infra/ only.
  4. Explicit pipeline stages. Pre/postprocessing are separate classes, never hidden inside model.predict().
  5. Every request creates a job. Sync and async paths both write a Job record — full audit trail.
  6. Version is always explicit at execution time. Routing resolves None to a concrete version before any pipeline is touched.

Detailed Architecture

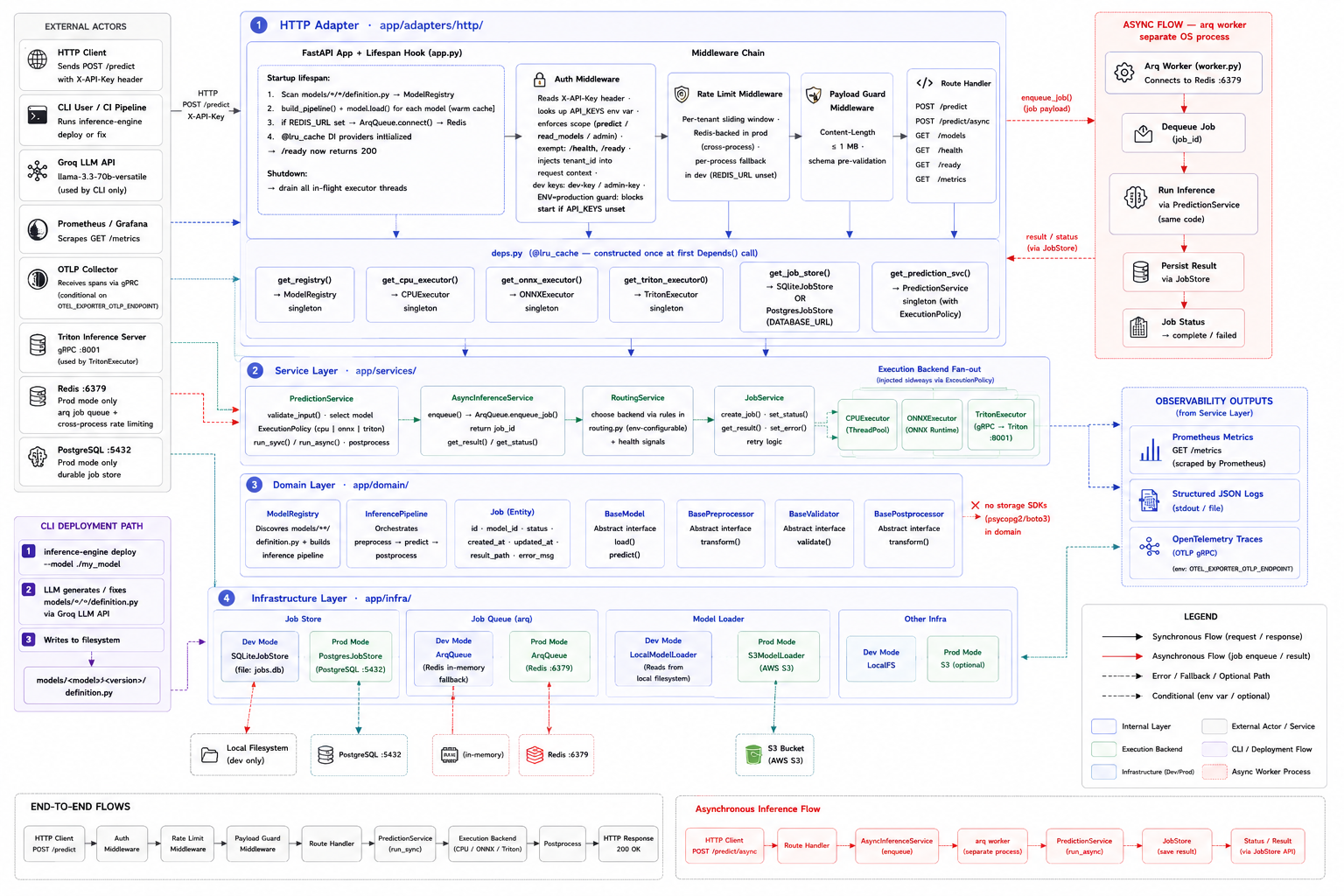

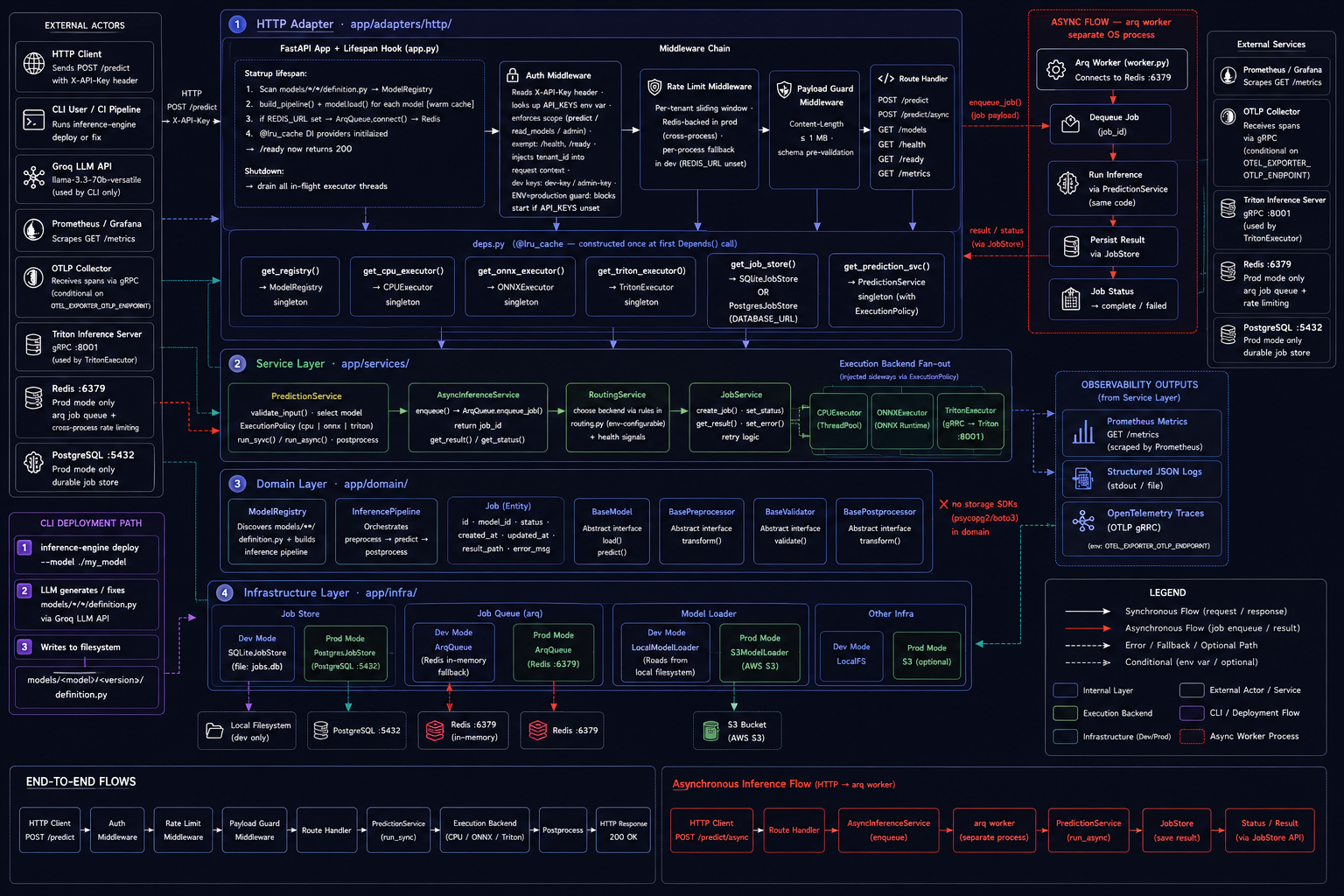

Detailed architecture diagram Detailed architecture diagram

Dependency injection

All shared singletons (registry, executors, services, job store) are constructed once via @lru_cache providers in app/adapters/http/deps.py and wired into route handlers via FastAPI's Depends().

The lifespan hook in app/adapters/http/app.py runs at startup to warm up all pipelines and connect the arq queue if REDIS_URL is set. On shutdown it drains all in-flight executor threads before the process exits.
